DURACEM CONCRETE DESIGN FLOORS

DURACEM IS A FLEXIBLE AND SUSTAINABLE ALTERNATIVE TO A POWERFLOATED CONCRETE FLOOR. THE BIO-BASED BINDER COMBINED WITH A HIGH AMOUNT OF RECYCLED CONTENT RESEMBLING THE LOOK OF A MONOLITHIC CONCRETE FLOOR WITH RESILIENT PROPERTIES.

Duracem is a strong, flexible seamless comfortable floor covering. Duracem can be used as a seamless decorative floor covering in the education sector, medical sector, offices, museums, but is also suitable for domestic surfaces. In short Duracem is a perfect solution for floors where the owners and users have a high demand on comfort, wear and impact resistance and hygiene. Duracem is a seamless solution from wall to wall. It’s a great alternative to hard concrete look finishes.

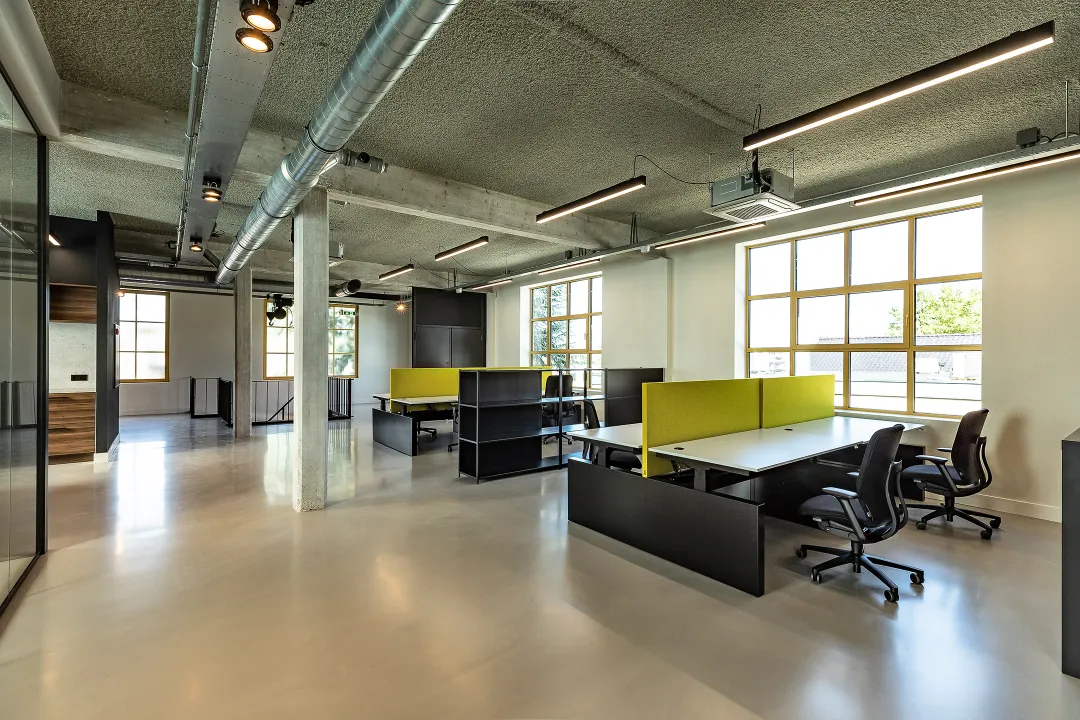

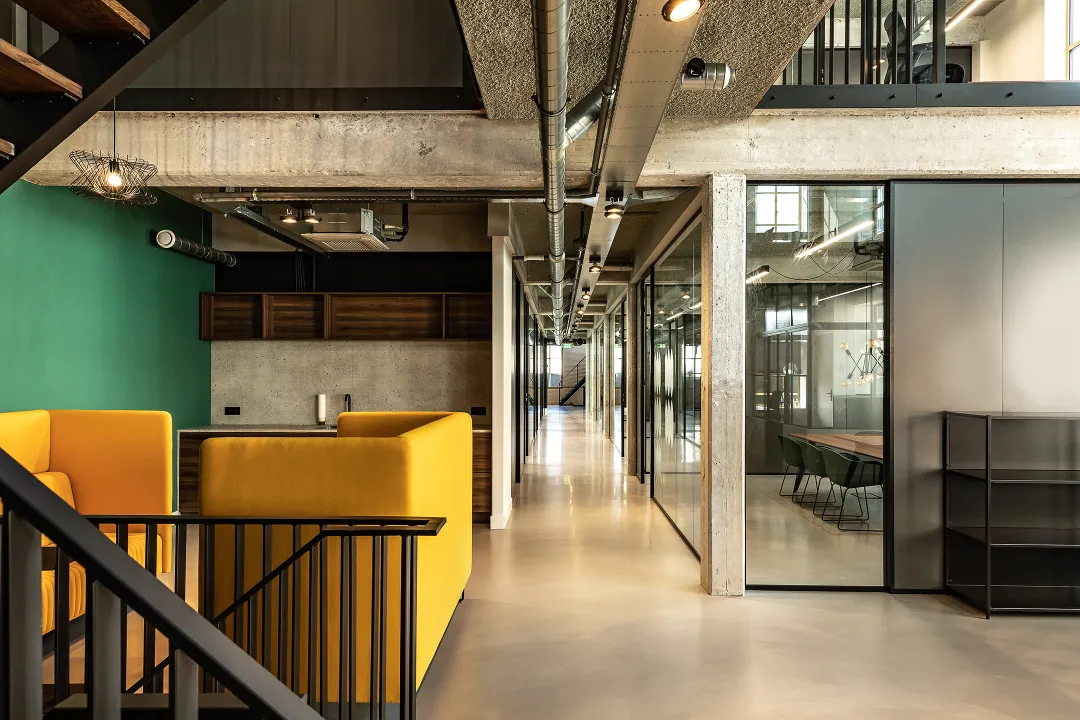

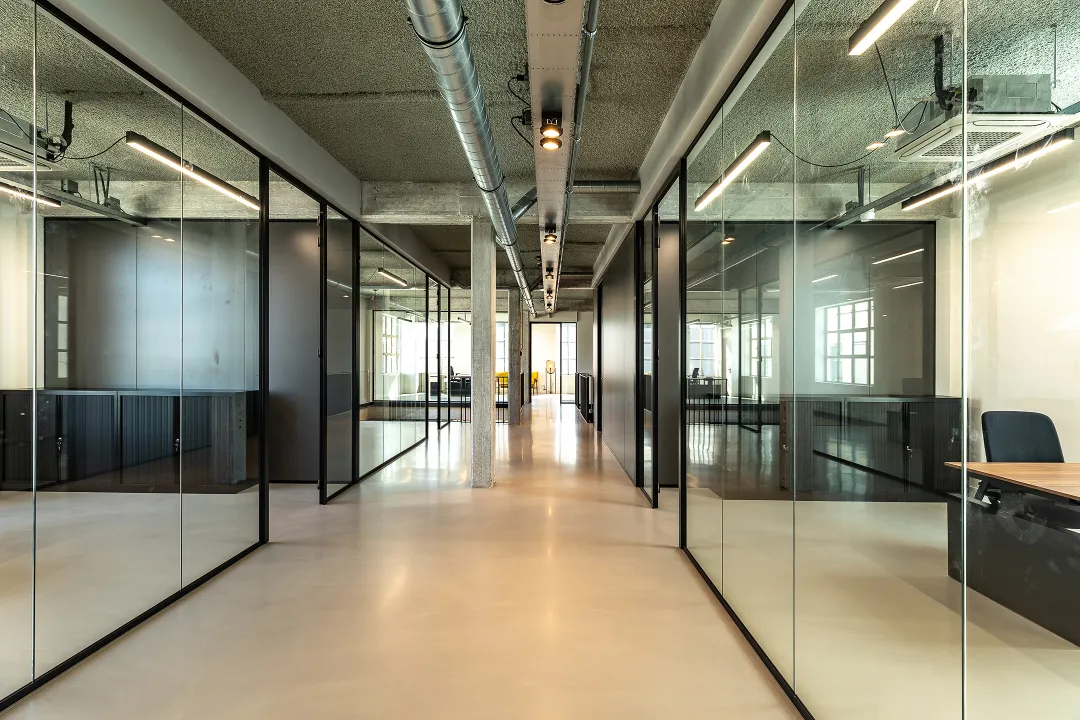

Wybertjes Fabriek Duracem Giel van Diest3

Duracem is a biopolymer-based floor covering using recycled material. Duracem has a monolithic concrete look due to the use of recycled material. Duracem has a Declare Red List Free label.

Duracem is a strong, flexible seamless comfortable floor covering. Duracem can be used as seamless decorative flooring in the education sector, medical sector, offices, museums, but is also suitable for domestic surfaces. In short, Duracem is a perfect solution for floors where owners and users place high demands on comfort, wear and impact resistance and hygiene. Duracem is a seamless wall-to-wall solution. It is a great alternative to hard concrete-look finishes.

Duracem has a unique look defined by the recycled material that it contains. Duracem has 12 different concrete looks. It is finished with a matt look. Duracem is highly elastic and shows perfect resistance to signs of use.

Duracem Cement

Duracem Ghost

Duracem Rustic

Duracem Whisper

Duracem Stone

Duracem Vintage

Duracem Carbon

Duracem Moss

Duracem Calm

Duracem Foggy

Duracem Truffle

Duracem Feather

Duracryl produces floorcoverings based on natural and renewable materials. This has a major advantage on climate change compared with fossil based products. For accountability of the impact of the carbon footprint of each flooring product we are using the definition of “Healthy Materials Lab at Parsons School of Design” in New York, a leading authority on this subject. “Currently, there is no universal threshold for ‘low embodied carbon’ in flooringmaterials. After discussing this research with experts, we have set a rigorous standard that can meet 2030 emission goals. These products, labeled with ‘LEC’, embody below 5kg of CO2 per square meter” All Duracryl products comply with this standard and are referred to as “Climate Positive Flooring”

composition

Duracem is a biopolymer based flooring recycled material being used. The Duracem has a monolithic concrete look by using recycled material. Duracem has a Declare Red List Free label.

application

Duracem is a tough, flexible seamless comfortable floor covering. Duracem can be used as a seamless decorative floor covering in the education sector, medical sector, offices, museums, but is also suitable for domestic surfaces. In short Duracem is a perfect solution for floors where the owners and users have a high demand on comfort, wear and impact resistance and hygiene. Duracem is a seamless solution from wall to wall. It’s a great alternative to hard concrete look finishes.

appearance

Duracem has an unique look which is being determined by the recycled material inside. The Duracem has 12 different concrete looks. It is finished with a matt look. Duracem is tough-elastic and shows a perfect resistance to the signs of use. After cure through Duracem is resistant to a wide range of chemicals, acids, leys, resins, solvents and foodstuff. Duracem is seamless and liquid tight. The majority of the ingredients in Duracem are renewable resources. Duracem is free of plasticizers. Duracem is easy maintainable.

cure through

Duracem is walkable 24 hours after the installation.The complete chemical and mechanical properties will be achieved after 7 days of curing at a minimum temperature of 15°C.

maintenance

Regular removal of dust and if necessary wet cleaning with a neutral cleaning agent. For further instructions see the maintenance instruction guide.

installation

The concrete or screed subfloor has to be primed and levelled with a self levelling smoothing compound to obtain a flat and levelled surface. Uneven surfaces have to be leveled by e.g. diamond grinding prior to the levelling compound. All dust and loose parts have to be fully removed from all surfaces before the product is applied, preferably using a brush and/or industrial vacuum cleaner. Prior to the installation of the Duracem a suitable primer needs to be applied. During the installation the room temperature needs to be at least 62 °F (15,5°C). The floor temperature need to be at least 59 °F (15°C) and minimum 3 °F (3 °C) above the dew point.

layer thickness

2 to 2,5 mm

classification

CLASS 23 DOMESTIC HEAVY

Minimum thickness 2 mm

CLASS 34 COMMERCIAL VERY HEAVY

Minimum thickness 2 mm

CLASS 43 INDUSTRIAL HEAVY

Minimum thickness 2 mm

technical data

RESISTANCE TO INDENTATION

EN ISO 24343-1 • 0.03 mm • ASTM F-1914 • 0.001inch / 750 PSI

EFFECT OF A FURNITURE LEG

EN 424 • No damage • Static Load Limit: exceeds 1000 PSI when tested in accordances ASTM F-970-00

ABRASION RESISTANCE

ASTM D4060 -14 • CS17 • Wheels/10N/1500 cycles • 55 mg

ELECTRICAL BEHAVIOR

EN 1815 • < 2 kV

LIGHTFASTNESS

EN ISO 105-B02 • 7 – 8 • ASTM F-1515 • 7 – 8 (1-Severe change, 8-No change). Duracem contains natural cork particles that could be impacted by UV light.

FLEXIBILITY

EN 435 • 20 mm, no cracking • ASTM F-137-08 • 0.79 inch, no cracking

RESISTANCE TO CHEMICALS

EN ISO 26987 • No changes • Passes in accordance with ASTM F-925 • No change

STAINING RESISTANCE

EN 423 • Category 1+2: level 5, Category 3: level 4/5

CIGARETTE RESISTANCE

EN 1399 • Proc A (stubbed out) ≥ level 4 • Proc B (burning) ≥ level 3

THERMAL CONDUCTIVITY

EN ISO 12524 • 0.15 W/m.K, suitable for underfloor heating • ASTM C-518-17 • 0.15 W/m.K

ACCOUSTICAL IMPACT NOISE REDUCTION

EN ISO 12524 • ASTM E-2179 03 • Δ Lw = 8dB Corques • 15dB Corques Comfort

THICKNESS SWELLING

EN 13329 • < 0,8%

WATER TIGHTNESS

EN 13553 • Watertight

SUITABILITY FOR USE IN INCIDENTAL HUMID CONDITIONS

EN 426 • Suitable

CE NUMBER

15 • DoP08CORQ017 • EN 13813:2002

CORQUES LIQUID LINO

Contains recycled content

REACTION TO FIRE

EN 13501-1 • Bfl-S1 • Class 1 when tested in accordance with ASTM E-648 Critical Radiant Flux • Meets 450 or less, when tested in accordance with ASTM 662/ NFPA 258 Smoke Density

CASTOR CHAIR CONTINUOUS USE

EN 425 • 25.000 • Slight change in appearance • no delamination • ASTM D-6962 • 25.000 • slight change • no delamination

SLIP RESISTANCE

DIN 51130 • R9 standard / R11 upon request • EN 13893 • DS: ≥ 0,30 • Meets or exceeds the industry recommendation of >0.5 for flat surfaces when tested in accordance with ASTM D-2047

* However the ASTM F-2034 and the ASTM F-2195 are designed for sheeted or tiled linoleum Corques Liquid Lino fulfills or exceeds all technical requirements mentioned in these ASTM normatives.
